Silicon Carbide Beams
High-strength SiC beams engineered for kiln furniture and furnace structures. Excellent creep resistance, thermal shock performance, and dimensional stability across 1000–1650 °C.
- Samples in 3–7 days
- Small batch in ~7 days
- 1 pc MOQ
SISIC Beam Overview
Silicon carbide beams, also known as reaction bonded square beams, special-shaped beams, or support columns, are used as load-bearing structures in tunnel kilns, shuttle kilns, and roller kilns.
They offer excellent high-temperature strength, thermal shock resistance, and oxidation resistance.
Durable and deformation-free over time, they are ideal for sanitary and electrical ceramics, helping reduce energy use without adding kiln car weight.
RSSIC Square Beam Specification
| Model | Cross-Section Height (mm) | Cross-Section Width (mm) | Wall Thickness (mm) | Length (mm) |
| AT-THG-FL001 | 20 | 20 | 4 | 50-4500 |
| AT-THG-FL002 | 20 | 20 | 5 | 50-4500 |
| AT-THG-FL003 | 20 | 30 | 4 | 50-4500 |
| AT-THG-FL004 | 20 | 30 | 5 | 50-4500 |
| AT-THG-FL005 | 20 | 40 | 5 | 50-4500 |
| AT-THG-FL006 | 25 | 30 | 5 | 50-4500 |
| AT-THG-FL007 | 30 | 30 | 4 | 50-4500 |
| AT-THG-FL008 | 30 | 30 | 5 | 50-4500 |
| AT-THG-FL009 | 30 | 40 | 4 | 50-4500 |
| AT-THG-FL010 | 30 | 40 | 5 | 50-4500 |
| AT-THG-FL011 | 30 | 40 | 6 | 50-4500 |
| AT-THG-FL012 | 30 | 50 | 4 | 50-4500 |
| AT-THG-FL013 | 30 | 50 | 5 | 50-4500 |
| AT-THG-FL014 | 30 | 50 | 6 | 50-4500 |
| AT-THG-FL015 | 30 | 60 | 5 | 50-4500 |
| AT-THG-FL016 | 30 | 60 | 6 | 50-4500 |
| AT-THG-FL017 | 45 | 50 | 4 | 50-4500 |
| AT-THG-FL018 | 45 | 50 | 5 | 50-4500 |
| AT-THG-FL019 | 45 | 50 | 6 | 50-4500 |
| AT-THG-FL020 | 40 | 40 | 5 | 50-4500 |
| AT-THG-FL021 | 40 | 40 | 6 | 50-4500 |
| AT-THG-FL022 | 40 | 40 | 7 | 50-4500 |
| AT-THG-FL023 | 40 | 50 | 6 | 50-4500 |
| AT-THG-FL024 | 40 | 50 | 7 | 50-4500 |
| AT-THG-FL025 | 40 | 60 | 5 | 50-4500 |
| AT-THG-FL026 | 40 | 60 | 6 | 50-4500 |
| AT-THG-FL027 | 40 | 60 | 7 | 50-4500 |
| AT-THG-FL028 | 45 | 45 | 5 | 50-4500 |
| AT-THG-FL029 | 45 | 45 | 6 | 50-4500 |
| AT-THG-FL030 | 45 | 45 | 7 | 50-4500 |
| AT-THG-FL031 | 50 | 50 | 5 | 50-4500 |
| AT-THG-FL032 | 50 | 50 | 6 | 50-4500 |
| AT-THG-FL033 | 50 | 50 | 7 | 50-4500 |
| AT-THG-FL034 | 50 | 60 | 6 | 50-4500 |
| AT-THG-FL035 | 50 | 60 | 7 | 50-4500 |
| AT-THG-FL036 | 50 | 60 | 8 | 50-4500 |
| AT-THG-FL037 | 50 | 70 | 6 | 50-4500 |
| AT-THG-FL038 | 50 | 70 | 7 | 50-4500 |
| AT-THG-FL039 | 50 | 70 | 8 | 50-4500 |
| AT-THG-FL040 | 60 | 60 | 6 | 50-4500 |
| AT-THG-FL041 | 60 | 60 | 7 | 50-4500 |
| AT-THG-FL042 | 60 | 60 | 8 | 50-4500 |
| AT-THG-FL043 | 60 | 60 | 9 | 50-4500 |
| AT-THG-FL044 | 60 | 70 | 7 | 50-4500 |
| AT-THG-FL045 | 60 | 70 | 8 | 50-4500 |
| AT-THG-FL046 | 60 | 70 | 9 | 50-4500 |
| AT-THG-FL047 | 60 | 80 | 7 | 50-4500 |
| AT-THG-FL048 | 60 | 80 | 8 | 50-4500 |
| AT-THG-FL049 | 60 | 80 | 9 | 50-4500 |
| AT-THG-FL050 | 60 | 90 | 7 | 50-4500 |
| AT-THG-FL051 | 60 | 90 | 8 | 50-4500 |
| AT-THG-FL052 | 60 | 90 | 9 | 50-4500 |
| AT-THG-FL053 | 70 | 70 | 7 | 50-4500 |
| AT-THG-FL054 | 70 | 70 | 8 | 50-4500 |
| AT-THG-FL055 | 70 | 70 | 9 | 50-4500 |
RSSIC Semi-Open Square Beam Specifications
| Model | Cross-Section Height (mm) | Cross-Section Width (mm) | Wall Thickness (mm) | Length (mm) |
| AT-THG-FL056 | 50 | 20 | 5 | 50–4500mm |
| AT-THG-FL057 | 50 | 20 | 6 | 50–4500mm |
| AT-THG-FL058 | 50 | 20 | 7 | 50–4500mm |
| AT-THG-FL059 | 50 | 20 | 8 | 50–4500mm |
| AT-THG-FL060 | 60 | 25 | 6 | 50–4500mm |
| AT-THG-FL061 | 60 | 25 | 7 | 50–4500mm |
| AT-THG-FL062 | 60 | 25 | 8 | 50–4500mm |
| AT-THG-FL063 | 60 | 25 | 9 | 50–4500mm |
| AT-THG-FL064 | 70 | 30 | 7 | 50–4500mm |
| AT-THG-FL065 | 70 | 30 | 8 | 50–4500mm |
| AT-THG-FL066 | 70 | 30 | 9 | 50–4500mm |
Beam Load-bearing Capacity Table
| Size of Section ( mm ) | Wall Thickness (mm ) | Concetrated Loading ( Kg ) | Uniformly Distributed Loading (Kg ) | |||
| B side | H side | B side | H side | B side | H side | |
| 30 | 30 | 5 | 74 | 74 | 147 | 147 |
| 30 | 40 | 5 | 117 | 95 | 235 | 190 |
| 40 | 40 | 5 | 149 | 149 | 298 | 298 |
| 50 | 50 | 6 | 283 | 283 | 567 | 567 |
| 50 | 60 | 6 | 374 | 331 | 748 | 662 |
| 50 | 70 | 6 | 473 | 379 | 946 | 757 |
| 60 | 60 | 7 | 481 | 481 | 962 | 962 |
| 80 | 80 | 7 | 935 | 935 | 1869 | 1869 |
| 100 | 100 | 8 | 1708 | 1708 | 3416 | 3416 |
| 110 | 110 | 10 | 2498 | 2498 | 4997 | 4997 |
Features
（1）High load-bearing performance: Maintains strength at high temperatures without bending or deforming over time.
（2）Extended service life: Outlasts other materials, reducing replacement frequency and downtime.
（3）Energy-efficient design: Resists thermal shock and oxidation, cutting energy use without increasing kiln car weight.
（4）Ideal for ceramics industry: Perfect for sanitaryware and electrical porcelain kilns due to reliability and durability.
（5）Outstanding material properties: Offers high strength, hardness, heat resistance, wear resistance, and corrosion resistance.
Applications

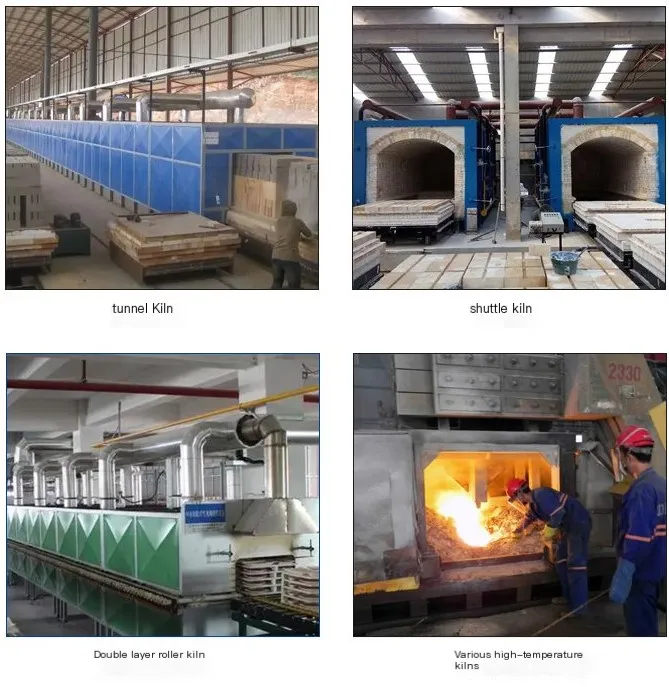

SiC beams are especially suitable for load-bearing structures in tunnel kilns, shuttle kilns, double-layer roller kilns, and other industrial furnaces. They are ideal kiln furniture for industries such as high-voltage porcelain, sanitaryware, glass-ceramics, and refractory materials. (Operating temperature: 1380°C, working pressure: 280 MPa.)
FAQ
1) RBSiC vs NSiC vs ReSiC vs SSiC: how to choose?
2) What maximum temperatures apply?
3) Do you supply hollow beams?
Yes. Hollow profiles reduce mass and thermal inertia, lowering sag and energy use. Wall thickness is sized to span and load.
4) What straightness tolerance can you hold?
5) Are cross-sections standardized?
6) How do I reduce sag/creep on long spans?
7) Can these beams run in oxidizing atmospheres?
8) Do you provide machined ends or sleeves?
9) What information do you need to quote?
10) Can beams reach 3–4 m length?
Customization
From design to reverse engineering, we provide free technical consulting to help upgrade your equipment. We specialize in high-precision complex parts with ±0.01mm tolerances and special coatings like acid and oxidation resistance, tailored for demanding industrial applications.
FAQ
What types of silicon carbide products does Zirsec supply?
Zirsec offers a wide range of SiC components including tubes, beams, plates, crucibles, rollers, sealing rings, and custom mechanical parts for industrial, chemical, and semiconductor applications.
Can Zirsec provide customized sizes or shapes?
Yes. We support OEM and customized production based on your drawings, specifications, or working conditions.
Do you provide samples for testing?
Yes, sample orders are available for standard items. For custom-made components, small batch samples can be produced after design confirmation.
How can I request a quotation?
Simply fill out the contact form on this page with product type, quantity, and specifications. Our sales engineer will send you a detailed quotation within 24 hours.
Does Zirsec offer technical consultation or design assistance?
Absolutely. Our engineers provide material selection guidance, structural optimization, and technical support for your specific applications.
How does Zirsec ensure product quality?
All products undergo strict inspection procedures, including dimensional accuracy, density, strength, and corrosion resistance tests before delivery.
