Silicon Carbide Ceramics for High-Temp, Corrosive & Wear-Intensive Service
Zirsec manufactures silicon carbide (SiC) components and custom parts for filtration, wear control and high-temperature processing. From prototypes to mass production, we help OEM designers and plant engineers replace metals and conventional refractories with durable SiC solutions.
- Material grades: SSiC, RBSiC (SiSiC), recrystallized SiC for different duty profiles.
- 1-piece MOQ, samples in 3–7 days, flexible small-batch production.
- ±0.01 mm precision machining for complex geometries and sealing surfaces.
- Applications: high-temperature furnaces, corrosive fluid handling, wear-intensive machinery, semiconductor and clean processing lines.
Why buyers choose Zirsec as their SiC partner
20+
Years of industrial SiC experience
8,000+
Mass-production SiC cases delivered
300+
Industrial clients served worldwide
1 pc
Minimum order quantity for many parts
Tell us your operating conditions and drawings. Our engineers will respond with a tailored material & design proposal, plus a clear quotation.
SIC Products
High-performance silicon carbide solutions designed for extreme wear, heat, and corrosion resistance.

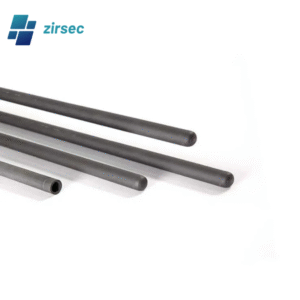

SiC tubes for furnace linings, thermocouple protection, heat exchangers and aggressive gas transport with excellent thermal shock resistance.
- Continuous service up to high temperatures (grade-dependent)
- Corrosion & oxidation resistance in harsh atmospheres
- Options: straight, multi-channel, membrane, rollers & beams
High-performance crucibles for non-ferrous metal melting and high-temperature processing with strong thermal conductivity and shock resistance.
- Foundry, lab and special furnace designs
- Cylindrical, square, arc and custom geometries
- Coatings to extend campaign life
Mechanical seal rings for chemical, slurry and high-purity pumps where leakage, corrosion and wear must be tightly controlled.
- SSiC, RBSiC and special grades
- Precision lapping and optical-flat inspection
- Options for diamond-coated faces
SiC plates and tiles for kiln furniture, furnace linings, armour and high-wear panels where strength and dimensional stability matter.
- Flat, ribbed and custom profiles
- Stable at high temperature with low creep
- Available in SSiC, RBSiC and RSiC
Wear- and corrosion-resistant nozzles for FGD systems, sandblasting and high-temperature spraying in severe duty conditions.
- High erosion resistance in slurry and gas streams
- Stable geometry for consistent spray patterns
- Custom inlet/outlet shapes on request
SiC boats and trays for sintering, powder processing and semiconductor handling in demanding thermal cycles.
- High rigidity at elevated temperature
- Low contamination for sensitive materials
- Custom pocket and slot designs
High-hardness balls for valves, bearings and grinding duties where steels and conventional ceramics wear too quickly.
- Excellent abrasion resistance
- Stable under thermal cycling
- Wide size range available
Epi-ready 4H / 6H silicon carbide wafers and substrates for high-power, high-frequency and high-temperature electronics.
- Wide bandgap, high breakdown voltage
- Excellent thermal conductivity
- Multiple diameters and orientations

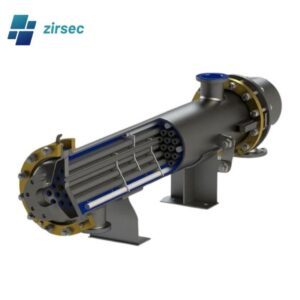

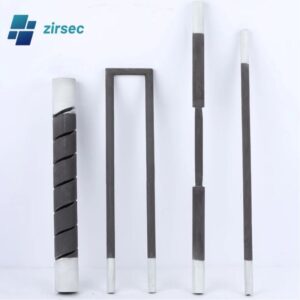

SiC heat exchangers and heating elements for aggressive chemical service and high-efficiency thermal systems.
- High thermal conductivity with corrosion resistance
- Compact designs for demanding plants
- Custom channel layouts available
Select Silicon Carbide by Application
Many projects start from operating conditions rather than part drawings. Use the guide below to match your application to the most suitable SiC products and material grades.
SiC Material Grades at a Glance
Most industrial projects use one of three main silicon carbide grades. Choosing the right grade is as important as choosing SiC itself. The table below summarises typical characteristics.
| Parameter | SSiC Sintered SiC | RBSiC / SiSiC Reaction-bonded SiC | RSiC Recrystallized SiC |
|---|---|---|---|
| Typical purity & porosity | Very high purity, very low porosity; suitable for aggressive media and clean processes. | Contains some free silicon; low porosity and good dimensional stability in complex shapes. | High purity, open microstructure for lightweight, thick-section components. |
| Max. service temperature (air) | Up to ~1600 °C depending on design and atmosphere. | Typically ~1300–1400 °C in air; grade- and load-dependent. | Comparable to high-end SSiC grades in many furnace duties. |
| Corrosion resistance | Excellent in many acids, alkalis and gases; preferred for harsh chemistries. | Very good for most industrial media; avoid extreme pH where free silicon may react. | Very good in high-temperature oxidising atmospheres. |
| Thermal shock resistance | High; retains strength at elevated temperature with good thermal conductivity. | Very good; often chosen for components facing rapid temperature swings. | Excellent for long, lightweight furnace components. |
| Mechanical strength & wear | Very high hardness and flexural strength, including at temperature. | High strength with good wear and impact resistance for heavy industrial duty. | High strength relative to weight; ideal for large structural parts. |
| Typical applications | Mechanical seals, high-purity tubes, critical wear parts, semiconductor components. | Nozzles, kiln furniture, general-purpose furnace parts, pump components. | Large tubes, beams and plates in high-temperature furnaces. |
| Cost level (relative) | Higher | Medium | Medium–higher (grade-dependent) |
Need help choosing a grade? Share your temperature, media, pressure and expected lifetime requirements, and we’ll recommend a suitable material and design envelope.
Why Work with Zirsec for Silicon Carbide
We combine material science, precision processing and application engineering to deliver SiC components that survive real-world duty, not just look good on a datasheet.
Fast small-batch customization
1-piece MOQ for many items, samples in 3–7 days and agile small-batch production help you move from idea to validated hardware quickly.
Precision manufacturing & QC
Vacuum sintering, CNC machining and strict inspection for density, strength, dimensions and surface finish, including optical-flat checks for seal faces.
Application engineering support
Our engineers work with your team on material selection, geometry optimisation and failure-analysis feedback to raise MTBF and reduce life-cycle cost.
Global supply & documentation
Experience with international shipments, technical documentation and long-term supply for OEM programs and retrofit projects.
How We Work with Your SiC Project
Whether you are prototyping a new component or upgrading an existing design, the workflow is structured to minimise risk and compress lead times.
1. Define requirements
Share drawings or sketches, media, temperature, pressure, mechanical loads and target lifetime. If you are replacing metals or other ceramics, we can start from existing parts.
2. Material & design review
Our engineers recommend material grades and design tweaks to balance performance, risk and cost, drawing on past field experience.
3. Quotation & sampling
You receive a detailed quotation with lead times. Sample pieces are produced for fit, function and field trials before scaling up.
4. Small-batch and ramp-up
Flexible lines support small-batch validation and smooth transition to larger volumes once the design is frozen.
5. Long-term supply & optimisation
We monitor feedback from the field and can refine designs to further extend service life or simplify installation over time.
Technical Resources for SiC Projects
Use the resources below to deepen your understanding of silicon carbide materials and see how other engineers apply them in real equipment.
How to Solve Corrosion Problems in Chemical Equipment
How to Solve Corrosion Problems in Chemical Equipment?
Silicon Carbide Wear Failure: Root Causes & Fixes
Silicon carbide (SiC) wear failure usually shows up as
How to Extend the Lifespan of Silicon Carbide Components
If your furnace has been shut down because a SiC seal r
Why Your Pump Seal Keeps Leaking (Real Industrial Cases)
When a pump seal starts leaking, production stops, repl
Common Causes of Silicon Carbide Cracking (And Solutions)
Silicon carbide (SiC) components are prized for their h
How to Prevent Thermal Shock Failure in Ceramic Components
Thermal shock failure ruins ceramic parts faster than a
Why Do Mechanical Seals Fail? And How SiC Fixes It
Mechanical seals on pumps, compressors and mixers break
How SiC Components Reduce Maintenance in Mining Equipment
Mining operators ask the same question every time a bel
FAQ
What information do you need to quote a SiC component?
At minimum: drawings or sketches, dimensions, tolerances, material preference (if any), operating temperature and atmosphere, media (gas/liquid/solid and chemistry), pressure, mechanical loads, target lifetime and expected quantity profile (prototypes vs series).
How do I choose between SSiC, RBSiC and RSiC?
SSiC is usually selected for the most aggressive chemistries, high purity or critical wear locations. RBSiC is ideal for robust, cost-effective industrial duty and complex shapes. RSiC works well for large, lightweight furnace components. We can recommend a grade once we know your service conditions.
What are typical lead times and MOQ?
Many projects start with a 1-piece MOQ. Standard items can often be supplied from existing tooling. Typical guidance: samples in about 3–7 days and small batches in roughly a week, with larger orders scheduled according to size and complexity.
Can you replace existing metal or alumina components?
Yes. We frequently convert metal or alumina parts to SiC to improve service life, reduce corrosion issues and raise MTBF. We can start from your current drawings or physical samples, then optimise geometry for silicon carbide where appropriate.
Do you support long-term OEM programs?
We work with OEMs and plant operators on long-term supply, including qualification runs, stocking strategies and design refreshes as performance data accumulates in the field.
