Understanding how industrial Silicon Carbide ceramics are manufactured step by step is crucial for engineers who demand high-performance materials for extreme environments. Silicon Carbide (SiC) is not a naturally occurring mineral in large quantities; it is a synthetically produced material that requires high-tech processing to achieve its legendary hardness and thermal stability.
At ZIRSEC, we have refined our manufacturing workflow over 20 years. As a professional Chinese factory, we take pride in our “process control” approach, ensuring that every component—from standard tubes to custom seal rings—meets international quality standards before it leaves our facility.

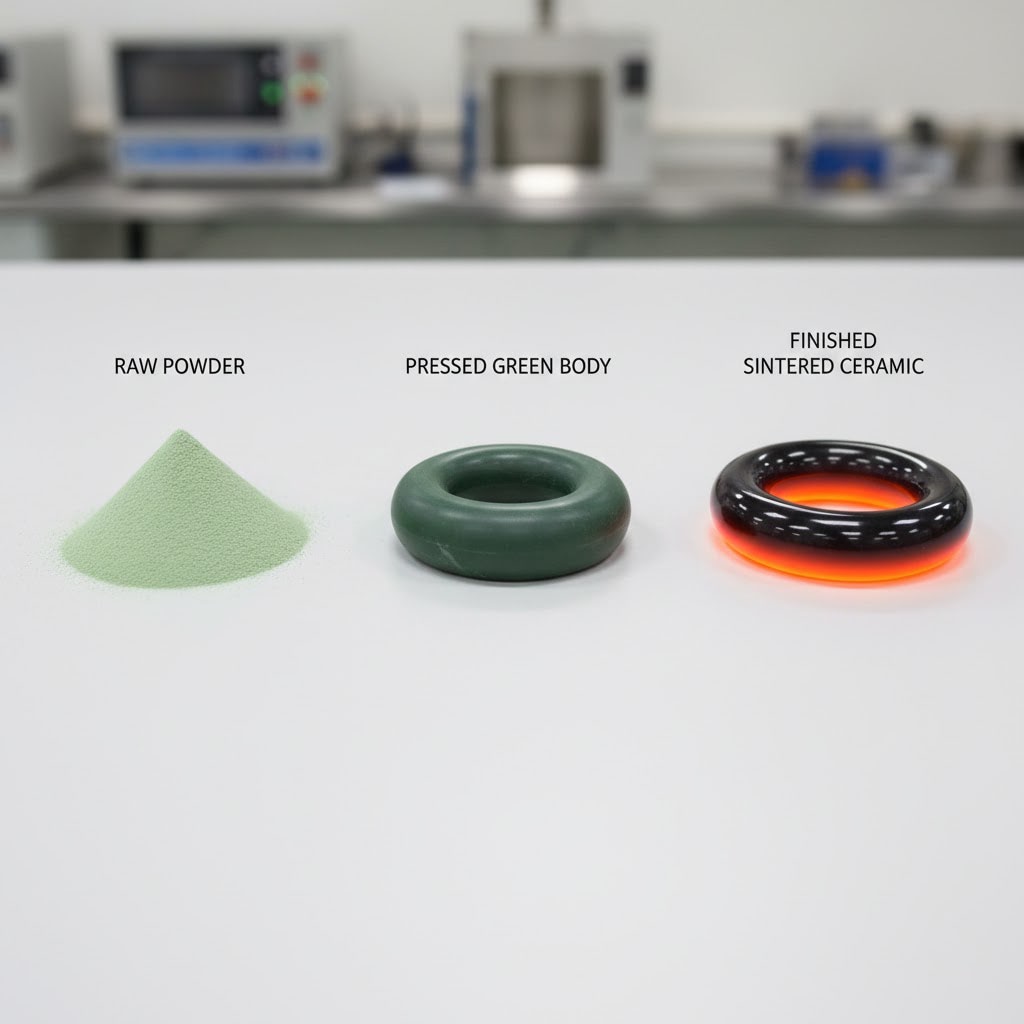

Step 1: Raw Material Selection and Powder Preparation
The journey begins with high-purity Silicon Carbide powder. To ensure the how industrial Silicon Carbide ceramics are manufactured step by step process starts correctly, we select sub-micron powders with a SiC content of at least 98%.
The powder is mixed with specific binders and lubricants in a ball mill. This mixture is then spray-dried to create free-flowing granules. This consistency is vital for the next stage, as it ensures uniform density in the molded part.
Step 2: Forming the “Green Body”
Once the powder is ready, it is shaped into what we call a “green body.” Depending on the part’s geometry, ZIRSEC uses several forming methods:
- Dry Pressing: Ideal for simple shapes like plates and small rings.
- Isostatic Pressing: Used for larger or more complex parts like tubes and rods to ensure uniform density from all directions.
- Slip Casting: Best for thin-walled or highly complex custom shapes.
At this stage, the part is solid but fragile—much like chalk—and can be easily machined to near-net shapes to save time in final processing.
Step 3: High-Temperature Sintering
This is the most critical phase in how industrial Silicon Carbide ceramics are manufactured step by step. The green bodies are placed into vacuum or controlled-atmosphere furnaces.
For Sintered SiC (SSiC), temperatures reach above 2,000°C. For Reaction Bonded SiC (SiSiC), the part is infiltrated with molten silicon at around 1,450°C. During sintering, the particles bond together at a molecular level, and the part shrinks to its final, high-density state. This process gives SiC its incredible hardness and corrosion resistance.
Step 4: Precision Diamond Grinding
Because sintered Silicon Carbide is too hard to be cut with traditional tools, we use diamond-tipped grinding wheels for final finishing. This step is where we achieve the Recommended Dimensional Tolerances (often up to ±0.01mm) required for mechanical seals and pump components.
We can perform surface polishing to achieve a mirror finish (Ra < 0.1μm) for applications requiring extremely low friction.
Step 5: Quality Inspection and Testing
Every ZIRSEC component undergoes a rigorous multi-point inspection:
- Dimensional Check: Using CMM and digital micrometers.
- Density Testing: Ensuring the material has reached its full structural potential.
- Surface Integrity: Checking for any microscopic cracks or defects.
