Industrial furnaces increasingly require burner components that can survive high temperatures, thermal shock cycles and chemically aggressive atmospheres. In these demanding environments, silicon carbide burner nozzles offer significant advantages over metal or refractory counterparts, delivering longer service life, stable combustion performance and reduced maintenance interruptions. This guide explains how silicon carbide burner nozzles function, what engineers should evaluate during selection and how Zirsec supports OEMs and end users with customized SiC burner solutions.

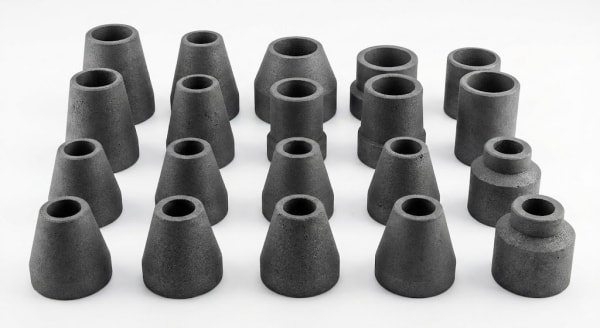

What Are Silicon Carbide Burner Nozzles?
Silicon carbide burner nozzles are high-temperature ceramic components designed to shape, stabilize and direct combustion within industrial furnaces. Manufactured from reaction-bonded or sintered SiC, these nozzles maintain strength at temperatures exceeding 1500°C, resist oxidation and stand up to the corrosive effects of combustion gases. Their structural rigidity and thermal shock resistance help maintain burner geometry, ensuring consistent heat distribution and optimized fuel efficiency.
Why SiC Burner Nozzles Matter in Furnace Applications
In many kilns, forging furnaces and heat-treatment systems, burner nozzles are subjected to continuous thermal cycling and harsh flame conditions that rapidly degrade metal or standard refractory nozzles. Silicon carbide addresses the main root-cause failure modes: erosion, oxidation, cracking and distortion. SiC’s extremely high hardness reduces abrasive wear from high-velocity flames and particulates. Its low thermal expansion minimizes cracking during rapid furnace heat-up and cool-down. Its chemical stability prevents premature material breakdown in atmospheres containing CO, SO₂, H₂S or other reactive gases.
Key Technical Selection Factors for SiC Burner Nozzles
Choosing the correct silicon carbide burner nozzle requires matching material grade, geometry and thermal properties to the operating environment. Engineers should evaluate: temperature resistance (SiC maintains strength beyond 1500°C, making it suitable for most industrial furnaces), thermal shock conditions (rapid cycling demands materials with high fracture toughness), burner design and flame pattern (nozzle throat, length and port geometry impact mixing efficiency), atmospheric chemistry (oxidizing, reducing or corrosive atmospheres influence material choice), mechanical support and mounting (nozzle dimensions must maintain alignment to ensure stable combustion), and maintenance intervals (SiC significantly reduces replacement frequency compared with metals or cast refractories).
How Zirsec Solves Burner Nozzle Challenges
Zirsec supplies industrial-grade silicon carbide burner nozzles engineered for long service life, dimensional stability and predictable combustion performance. By manufacturing both RBSiC and SSiC grades, Zirsec selects the correct ceramic formulation for each application based on gas composition, temperature load and thermal cycling intensity. Engineers benefit from Zirsec’s ability to produce complex burner geometries with precise tolerances, ensuring proper air-fuel mixing and flame stability. For retrofits or upgrades, Zirsec can duplicate worn or damaged nozzles from samples or drawings, allowing furnace operators to switch to SiC without redesigning burner assemblies. Fast small-batch production, typically from 1–20 pieces, allows plants to minimize downtime and test improved designs without long procurement cycles.
Common Application Scenarios
Silicon carbide burner nozzles are widely used across high-temperature industrial equipment, including steel reheating furnaces requiring stable high-velocity flames, forging and heat-treat furnaces operating under rapid temperature cycling, ceramic kilns where precise and uniform temperature profiles are essential, non-ferrous metal melting furnaces subject to corrosive combustion gases, and petrochemical processing units where oxidation-resistant components extend burner maintenance cycles. In each case, SiC nozzles improve reliability and reduce operational interruptions.
Case Example: Extending Nozzle Life in a High-Cycle Forging Furnace
A European forging plant experienced frequent burner failures due to cracking and distortion of cast-iron nozzles. High-cycle operation caused rapid thermal fatigue, leading to misaligned flames and inconsistent furnace temperatures. Zirsec evaluated the burner environment and supplied custom RBSiC nozzles with reinforced throat geometry and improved thermal stability. After installation, nozzle life increased by more than three times, maintenance shutdowns decreased, and furnace temperature uniformity improved, enabling better control of forging quality.
Typical Specifications for Zirsec SiC Burner Nozzles
| Parameter | Typical Value |
|---|---|
| Material Grade | RBSiC / SSiC |
| Maximum Service Temperature | Up to 1500–1650°C |
| Thermal Conductivity | High, enabling efficient heat distribution |
| Thermal Shock Resistance | Excellent under high-frequency cycling |
| Density | 3.05–3.15 g/cm³ |
| Hardness | Very high, suitable for abrasive flame environments |
| Design Options | Straight, venturi, multi-port, custom geometries |
| Tolerances | Custom machining to meet burner-specific requirements |
FAQs about Silicon Carbide Burner Nozzles
Are SiC burner nozzles compatible with most industrial burners?
Yes, Zirsec can produce direct-fit replacements for many standard burner housings or match your drawings for OEM-specific designs.
Do SiC burner nozzles reduce fuel consumption?
In many cases they do, because their stable geometry improves air-fuel mixing and flame efficiency over the nozzle’s lifetime.
How long do silicon carbide nozzles typically last?
Service life varies by furnace type, but SiC nozzles commonly last several times longer than metal or refractory nozzles under similar conditions.
Can SiC withstand reducing or corrosive atmospheres?
Yes, RBSiC and SSiC exhibit strong chemical stability in CO-rich, sulfur-bearing and reducing atmospheres found in industrial combustion.
Does Zirsec support small trial batches?
Yes, Zirsec supports low-volume orders starting from one piece, allowing operators to test upgrades without long procurement delays.
Contact Zirsec for Engineering Support
If your furnace requires more durable burner nozzles or improved combustion stability, Zirsec can provide custom silicon carbide solutions tailored to your burner design and operating environment. Need drawings, pricing or technical consultation? Contact Zirsec for fast engineering support and sample production.
